ESDP series Dry Screw Vacuum Pump
- ESDP variable pitch dry screw vacuum pump
■Advantages and Characteristics of ESDP Dry Screw Vacuum Pump
1. Inhalation efficiency (up 15%).
2. Improvement of exhaust efficiency (2-stage variable, continuously variable frequency).
3. Limit pressure: 1*10-2Torr (Torr).
4. Exhaust temperature is reduced by 50%.
5. Reduce power consumption by 30%.
6. Do not use oil and water, will not cause oil and water pollution.
7. Low power consumption, low noise, low vibration, good dynamic balance, no inertial force and high speed operation.
8. Simple design and structure, easy maintenance, low maintenance cost and long service life.
9. Wide application range and high vacuum performance.
10. Long service life, polytetrafluoroethylene, nickel and Hastelloy coatings on gas contact parts (special materials can be selected to solve corrosion problems in some processes).
11. Various sealing methods such as lip seal and mechanical seal can meet different process applications.
12. Rare lubrication method is adopted before and after to improve bearing durability.
■ Overview of ESDP Dry Screw Vacuum Pump
The ultimate pressure is completely free of oil and water.
ESDP dry screw vacuum pump uses a unique screw rotor profile, which saves 30% of power, has low exhaust temperature and stable process. Dry screw pump products are suitable for vacuum processes in various fields, and also maintain zui's excellent vacuum efficiency and durability.
ESDP series does not use oil and water. It is operated in a variable compression mode. It is a mixed process of water vapor and liquid. It is very suitable for various vacuum processes such as drying, solvent recovery, chemical industry, pharmacy, plastics, etc.
■Application Scope of ESDP Dry Screw Pump
●The application of ESDP series in semiconductor synthesis and liquid crystal production mainly includes semiconductor PLASMA enhanced vapor deposition (PECVD) and reactive ion etching (RIE), liquid crystal production etching process and CVD process for TFT screen plasma production. This process requires a backflow of 0 to protect the workpiece from contamination.
● In petrochemical industry, condensable gas, toxic gas, corrosive gas or gas containing dust is mainly extracted.

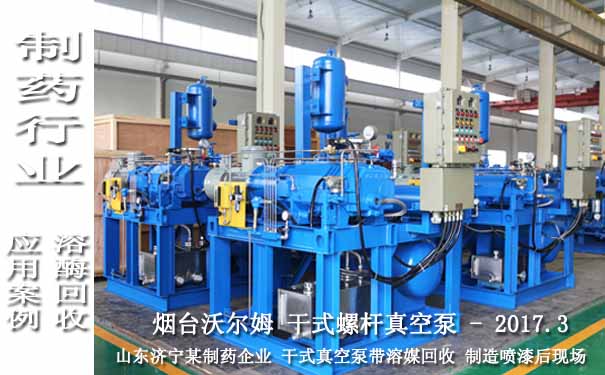

●The pharmaceutical industry is used for vacuum drying of drugs, recovery of drug intermediates, recovery of gaseous disinfectants, provision of clean and sterile conditions for artificial organs, etc.
●In chemical industry, it is used for vacuum distillation and solvent extraction and recovery, such as extraction and recovery of acetone, polyol and other processes.
●Industrial exhaust; Centralized vacuum processing system
●Mixing Process of Extruder and Exhaust Process of Plate
●Mixed resin deodorization process; Used in fatty acid production to eliminate water pollution and blockage in injectors.
●The food industry is used for spice, essence concentration, food packaging, etc.
■ Technical Parameters of ESDP Dry Screw Vacuum Pump
| Model No. | Suction Volume | Ultimate Pressure | Motor Power | Speed | Inlet Diameter | Outlet Diameter | Liquid Flow | Noise | Weight |
| M3/h | Pa | KW | rpm | mm | mm | L/min | dB | Kg | |
| ESDP320 | 260 | 1.33 | 7.5 | 2900 | 65 | 50 | 10 | 80 | 320 |
| ESDP430 | 360 | 1.33 | 11 | 2900 | 65 | 50 | 12 | 80 | 380 |
| ESDP650 | 540 | 1.33 | 15 | 2900 | 80 | 65 | 12 | 80 | 580 |
| ESDP900 | 750 | 1.33 | 18.5 | 2900 | 100 | 65 | 20 | 80 | 680 |
| ESDP1500 | 1400 | 1.33 | 37 | 2900 | 125 | 80 | 30 | 82 | 950 |
For more detailed information, please contact us.
■ Standard accessories:
Base and hood
Exhausting muffler and inlet air separator
Air intake
Check valve
Vacuum gauge
■ Optional accessories:
Suction filter
Exhaust condenser
Suction Type Gas - Liquid Separator
Flow switch and temperature switch
